Intel Core i5 14400 + Arc B570 · Intel B760 · Fanless PSU · 48GB DDR5 · 8TB NVMe + 56TB HDD build

Value build — most for your money · tower build on LGA 1700 + Intel B760

Parts · Value build — most for your money≈ €2,573

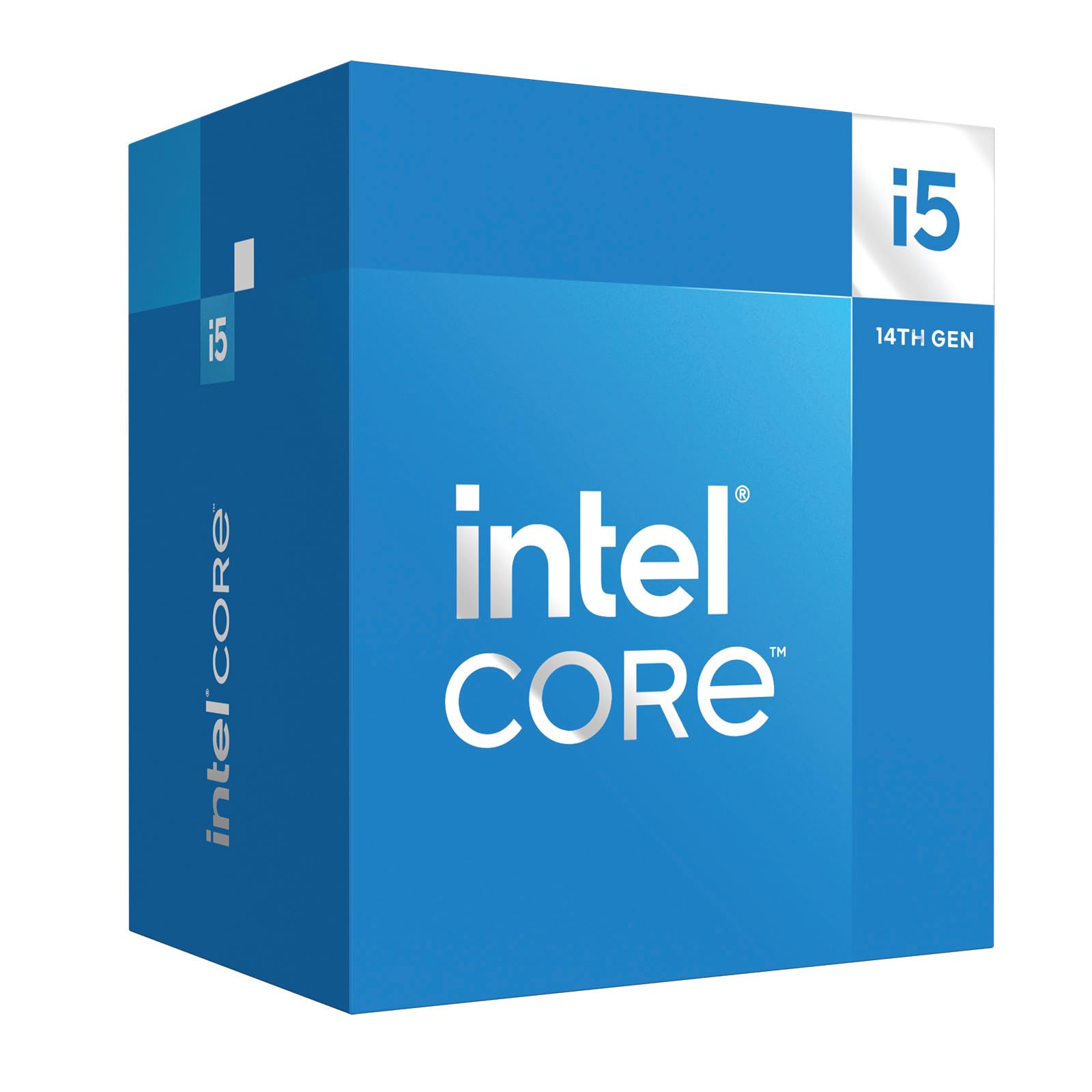

cpuIntel Core i5 1440010C/16T · 4.7 GHz · 65 W
€204
motherboardGigabyte B760 DS3H AX DDR5 ATXIntel B760 · ATX · 2× M.2
€152
ramTEAMGROUP T-Create Expert Black / Gold DDR5-6400 CL32 48GB (2x24GB)48 GB DDR5 · 6400 MT/s
≈ €169
caseCooler Master Force 500 ATX Mid Tower BlackATX/MATX/ITX · 7× 3.5″
€52
coolingAntec Skeleton 360 ARGB Whiteaio · 66 mm
€83
psuThermaltake Toughpower GT 1000W White1000 W · gold · modular
€151
storageRocket Q NVMe SSDNVME · 8 TB
€123

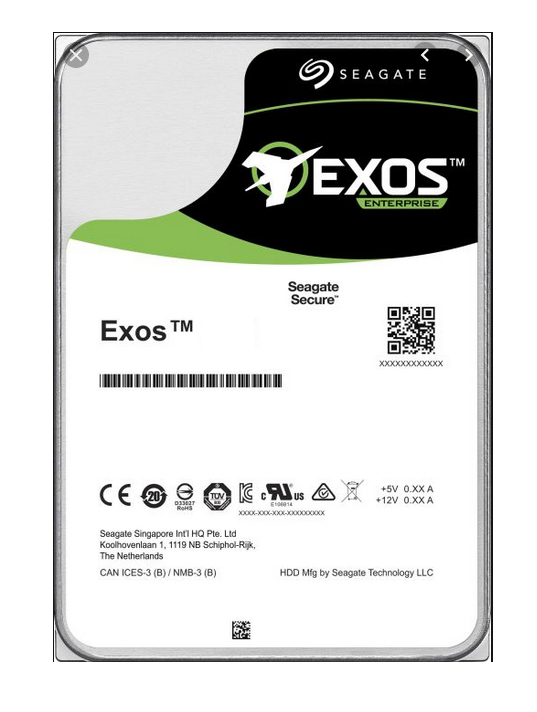

storage× 4Seagate Exos X16 14TB HDD 3.5" 7200RPM SATA3.5 HDD · 14 TB · NAS-rated
≈ €1,232
gpuASRock Intel Arc B570 Challenger 10GB GDDR6 OC10 GB VRAM · 150 W
€322
networkAsus XG-C100C 10 Gb/s Ethernet PCIe x410GbE · 1× ports
€85

Performance100

Value63

Efficiency46

Expandability86

Silence73

Longevity100

Reliability85

Overall70

Future-proof score

Strong future-proofing

76/100

Strong future-proofing (76/100) — this build should stay relevant for years without major surgery.

Upgrade path75

DIY build — the CPU, motherboard and PSU can each be upgraded independently without replacing the whole system.

Expansion64

Expansion headroom: 1 PCIe slot(s), 1 M.2, 0 SATA, 3 drive bay(s), 2 RAM slot(s) free.

Storage growth70

Storage is 72% utilized with 3 free drive bay(s) and 0 free SATA port(s).

Memory growth75

2 RAM slot(s) free; memory is 67% utilized.

Networking95

Networking is 10000 Mbps, and a free PCIe slot can add a faster NIC later.

Replacement ease90

ATX form factor with standard, socketed components — most parts are easy to replace.

Workload change65

A 10GB GPU is present — AI and transcoding workloads are covered.

Homelab Risk Score

Low risk

10/100

Low risk (10/100) — sensible redundancy and headroom; no single point of failure is exposed.

low

Single point of failure

Storage has redundancy (mirror) — a single drive failure does not take the array down.Fix: Continue a 3-2-1 backup strategy; redundancy is not a backup.

low

Storage risk

4 NAS-rated hard drive(s) — rated for 24/7 operation.Fix: Keep drives cool and monitor SMART health.

low

Data loss risk

Redundancy protects against drive failure, though it is not a substitute for backups.Fix: Follow a 3-2-1 backup rule: at least one copy off the box.

low

Power risk

PSU is 1000W, peak load 269W (27%).Fix: PSU sizing leaves healthy headroom for spikes and future parts.

low

Network risk

Single 10000 Mbps NIC — a switch/port failure takes the box fully offline, and multi-user media can saturate 10000 Mbps.Fix: Consider a second NIC or a managed switch; for heavy media, plan for 2.5/10G before the build.

low

Expansion risk

1 PCIe, 1 M.2, 0 SATA, 3 bays free.Fix: Healthy room for future drives, NICs and accelerators.

low

Upgrade risk

2024 platform — current generation with a forward-looking socket/feature set.Fix: Buy for the workload, not the socket — upgrade paths are a bonus, not a guarantee.

Final build audit

Audit found 1 critical and 0 warning item(s) worth fixing before you buy.

1 Critical2 Optional3 Future

Critical

Check the balance

Total (2573€) exceeds your budget (1100€) by 1473€ (134%). Ranking already prefers in-budget variants — this one is shown for comparison; check the value variant or raise the budget.Action: Reconsider the config for the stated workload or budget before buying.balance

Optional

Add a UPS

An always-on server holding data should survive power blips.Action: Add an online/line-interactive UPS sized to the build's idle draw.power

Optional

Keep a backup off-box

Redundancy inside the box does not survive fire, theft or a whole-array fault.Action: Mirror the important data to an external drive, a second box, or cloud.storage

Future

RAM expansion available

2 RAM slot(s) free for a later upgrade.Action: Leave them free until the workload actually grows.memory

Future

Drive bays remain

3 drive bay(s) free for future capacity.Action: Expand capacity in pairs (mirror/parity) when needed.storage

Future

PCIe slot available

1 free PCIe slot(s) for a NIC, HBA or GPU later.Action: Use it for a 10G NIC, extra HBA, or an accelerator when the need appears.expansion

What becomes the limit

Storage growing is the most likely thing to date this build within 3-5y.

3-5y

Storage growing

Why: 72% of capacity in use — comfortable today, tighter over a few years.What to do: Plan the growth curve; keep at least one bay free for the next drive.

Estimated FPS at Medium preset with a ASRock Intel Arc B570 Challenger 10GB GDDR6 OC and a Intel Core i5 14400.
Game	1080p	1440p	4K
Roblox	≈300	≈300	≈300
Minecraft	~300	~300	~300
Grand Theft Auto V	~300	~270	~170
Fortnite	~300	~210	~120
Minecraft: Java Edition	~90	~60	~25
The Witcher 3: Wild Hunt	~50	~35	~16
Red Dead Redemption 2	~125	~90	~50
Baldur's Gate III	~70	~50	~20
Palworld	~45	~30	~14
Valorant	~285	~285	~285
Cyberpunk 2077	~60	~45	~19
Hollow Knight	~255	~200	~120

All games

Real FPS from owners

Built this PC? Tell others the frame rate you actually get — we show the median of all reports next to our estimate.
