Intel Core i3 14100F · Intel B760 · 32GB DDR4 · 16TB HDD build

Efficiency build — lowest energy · tower build on LGA 1700 + Intel B760

Still the recommended build for:

Music streaming server Music streaming server · Europe

Parts · Efficiency build — lowest energy€510

cpuIntel Core i3 14100F4C/8T · 4.7 GHz · LGA 1700 · 58 W
€115

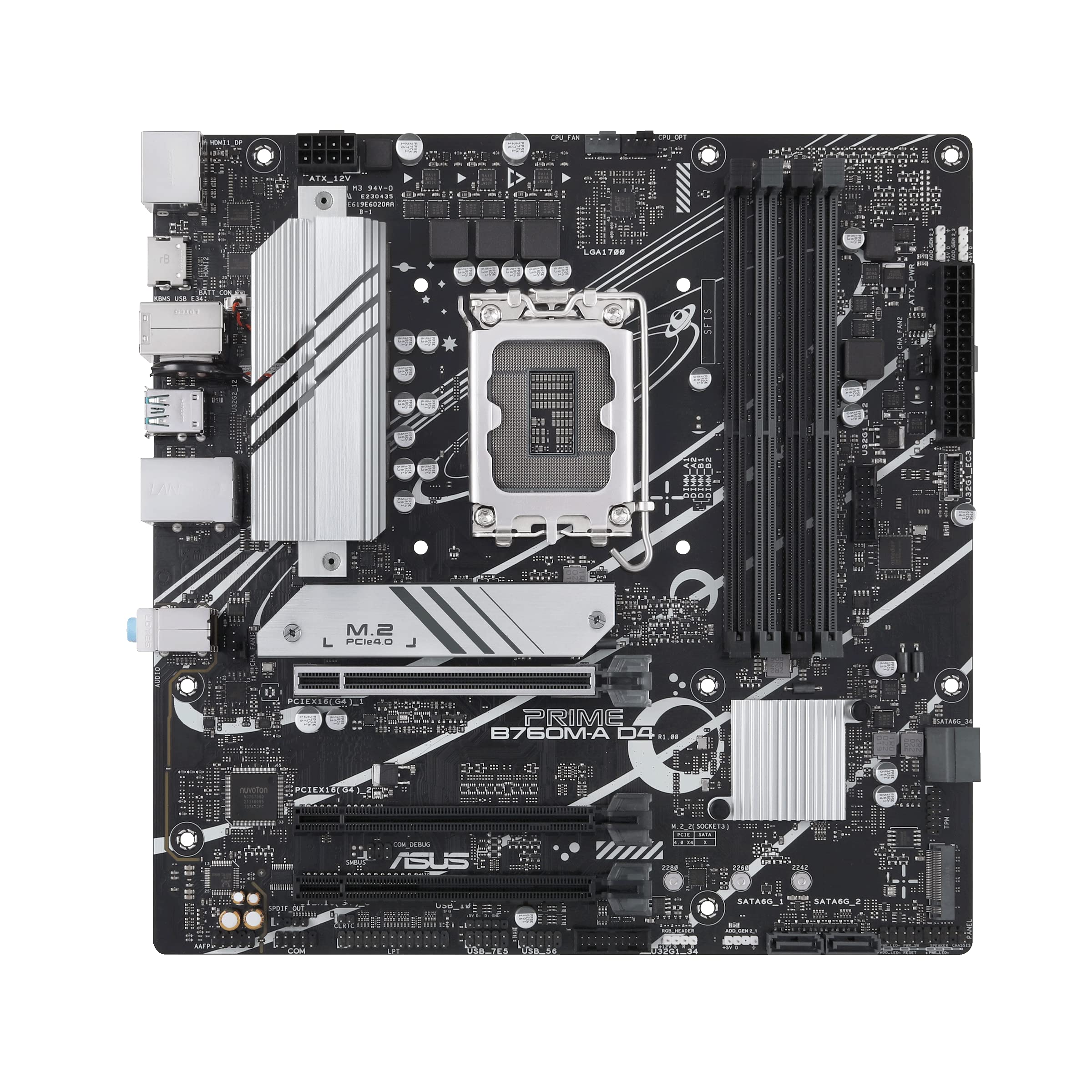

motherboardASUS PRIME B760M-A D4-CSMIntel B760 · MATX · 2× M.2
€122
ramG.Skill Ripjaws V DDR4-2133 CL15 32GB (2x16GB)32 GB DDR4 · 2133 MT/s
€62
caseGeometric Future Model 5 Fanless ATX Mid Tower White Tempered Glass Side PanelATX/MATX/ITX/EATX · 2× 3.5″
€19
coolingID-COOLING SE-903-XT Air 45.8 CFMair tower · 123 mm
€19
psube quiet! TFX Power 2 Black TFX 300W Non-Modular 80+ Gold Certified300 W · gold
€16
storage× 2WD Red Plus Internal NAS HDD 3.5" - 8TB3.5 HDD · 8 TB · NAS-rated
€157

Performance70

Value87

Efficiency77

Expandability96

Silence63

Longevity100

Reliability70

Overall80

Future-proof score

Strong future-proofing

77/100

Strong future-proofing (77/100) — this build should stay relevant for years without major surgery.

Upgrade path75

DIY build — the CPU, motherboard and PSU can each be upgraded independently without replacing the whole system.

Expansion76

Expansion headroom: 2 PCIe slot(s), 2 M.2, 2 SATA, 0 drive bay(s), 2 RAM slot(s) free.

Storage growth70

Storage is 100% utilized with 0 free drive bay(s) and 2 free SATA port(s).

Memory growth75

2 RAM slot(s) free; memory is 46% utilized.

Networking80

Networking is 2500 Mbps, and a free PCIe slot can add a faster NIC later.

Replacement ease90

ATX form factor with standard, socketed components — most parts are easy to replace.

Workload change70

No GPU, but there is room (2 PCIe slot(s), PSU headroom 3.2x) to add one for AI/transcoding.

Homelab Risk Score

Low risk

10/100

Low risk (10/100) — sensible redundancy and headroom; no single point of failure is exposed.

low

Single point of failure

Storage has redundancy (mirror) — a single drive failure does not take the array down.Fix: Continue a 3-2-1 backup strategy; redundancy is not a backup.

low

Storage risk

2 NAS-rated hard drive(s) — rated for 24/7 operation.Fix: Keep drives cool and monitor SMART health.

low

Data loss risk

Redundancy protects against drive failure, though it is not a substitute for backups.Fix: Follow a 3-2-1 backup rule: at least one copy off the box.

low

Power risk

PSU is 300W, peak load 93W (31%).Fix: PSU sizing leaves healthy headroom for spikes and future parts.

low

Network risk

Single 2500 Mbps NIC — a switch/port failure takes the box fully offline, and multi-user media can saturate 2500 Mbps.Fix: Consider a second NIC or a managed switch; for heavy media, plan for 2.5/10G before the build.

low

Expansion risk

2 PCIe, 2 M.2, 2 SATA, 0 bays free.Fix: Healthy room for future drives, NICs and accelerators.

low

Upgrade risk

2024 platform — current generation with a forward-looking socket/feature set.Fix: Buy for the workload, not the socket — upgrade paths are a bonus, not a guarantee.

Final build audit

Audit found 2 critical and 0 warning item(s) worth fixing before you buy.

2 Critical2 Optional2 Future

Critical

Check the balance

This build may struggle with the stated workload.Action: Reconsider the config for the stated workload or budget before buying.balance

Critical

CPU close to the limit

The workload uses 100% of the CPU — little headroom for background tasks or growth.Action: Consider a stronger CPU or drop a secondary workload.compute

Optional

Add a UPS

An always-on server holding data should survive power blips.Action: Add a line-interactive UPS sized for the build's peak draw (≥ 10 min at typical load for a clean shutdown).power

Optional

Keep a backup off-box

Redundancy inside the box does not survive fire, theft or a whole-array fault.Action: Mirror the important data to an external drive, a second box, or cloud.storage

Future

RAM expansion available

2 RAM slot(s) free for a later upgrade.Action: Leave them free until the workload actually grows.memory

Future

PCIe slot available

2 free PCIe slot(s) for a NIC, HBA or GPU later.Action: Use it for a 10G NIC, extra HBA, or an accelerator when the need appears.expansion

What becomes the limit

Storage nearly full is the most likely thing to date this build within 1-2y.

1-2y

Storage nearly full

Why: 100% of raw capacity is already in use — media libraries and backups grow fast.What to do: Expanding is easy: add a drive to the free bays/ports.

1-2y

CPU is the next bottleneck

Why: The CPU runs at 100% of capacity — new services or more users will hit the wall first.What to do: Consider a stronger CPU within the same socket generation while it is still cheap.
