Gigabyte · gpu

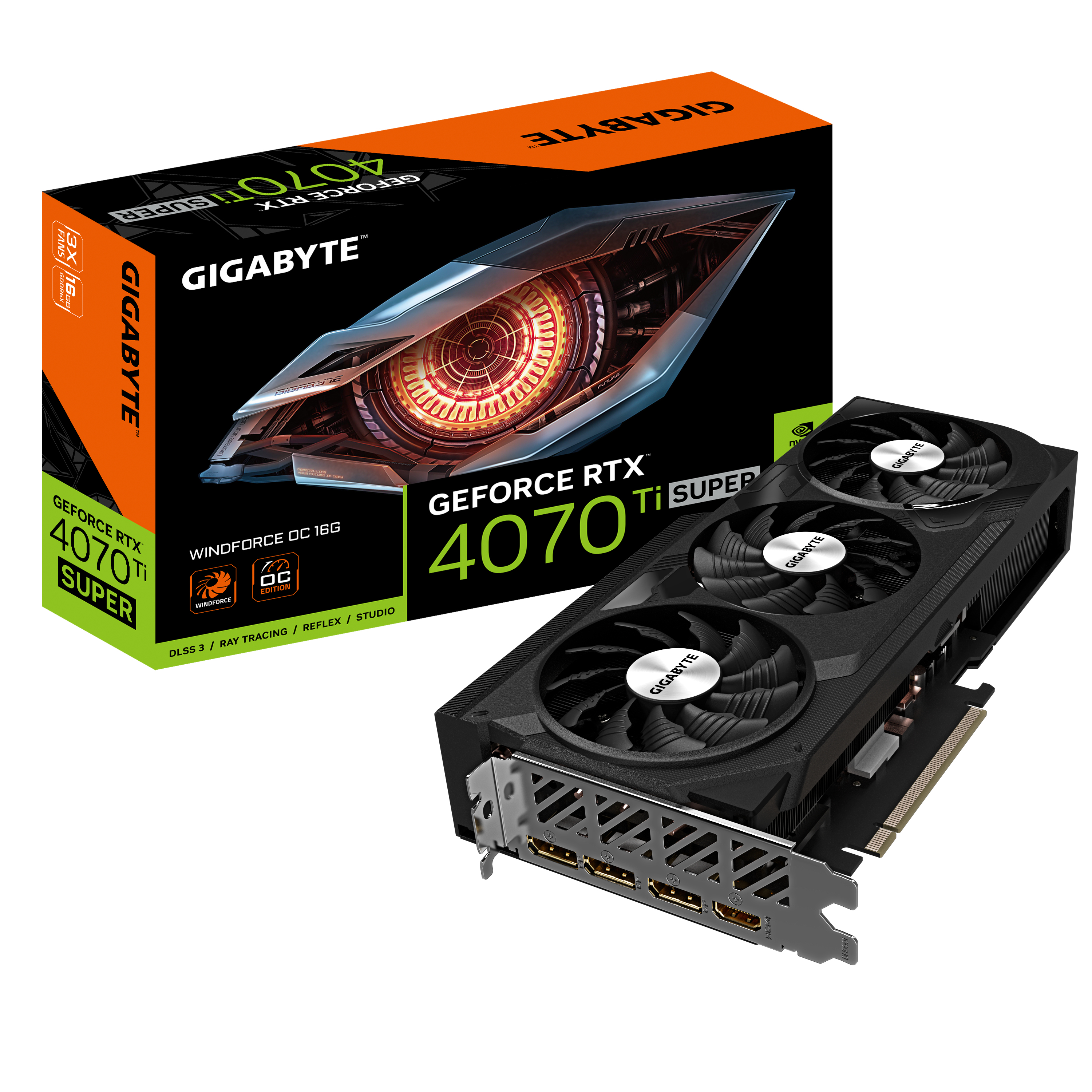

Gigabyte WINDFORCE OC GeForce RTX 4070 Ti SUPER 16GB GDDR6X Black
16 GB VRAM · 285 W · CUDA
Chipset
GeForce RTX 4070 Ti SUPER
VRAM
16 GB GDDR6X
Boost clock
2.625 GHz
TDP
285 W
Length
261 mm
Interface
PCIe x16
Neighbourhood
Top neighbours grouped by relation — click to open
Point at a part to see what it is — click to open it
Specifications
Catalog data
Source: OpenDB- TDP
- 285 W
- Color
- BLACK
- Length
- 261 mm
- Memory
- 16 GB
- Chipset
- GeForce RTX 4070 Ti SUPER
- Cooling
- 3 Fans
- Interface
- PCIe x16
- Core count
- 8448
- Memory type
- GDDR6X
- Video outputs · HDMI 2.1
- 1
- Video outputs · DisplayPort 1.4a
- 3
- Core base clock
- 2340 MHz
Show 3 more specs
- Core boost clock
- 2625 MHz
- Total slot width
- 3 mm
- Chipset manufacturer
- NVIDIA
Manufacturer data
Source: Icecat- Cuda
- Yes
- Depth
- 50 mm
- Height
- 126 mm
- Length
- 261 mm
- Memory bus
- 256 bit
- Form factor
- Full-Height/Full-Length (FH/FL)
- Cooling type
- Active
- HDMI version
- 2.1a
- Package type
- Box
- Dual link DVI
- No
- Package depth
- 322 mm
- Package width
- 214 mm
Show 24 more specs
- Interface type
- PCI Express 4.0
- Number of fans
- 3 fan(s)
- Opengl version
- 4.6
- Package height
- 75 mm
- Package weight
- 1.51 kg
- Product colour
- Black
- Directx version
- 12 Ultimate
- Cooling technology
- GIGABYTE WINDFORCE 3X
- Graphics processor
- GeForce RTX 4070 Ti SUPER
- Maximum resolution
- 7680 x 4320 pixels
- Memory clock speed
- 21000 MHz
- DisplayPort version
- 1.4a
- HDMI ports quantity
- 1
- Processor frequency
- 2565 MHz
- Tv tuner integrated
- No
- Displayports quantity
- 3
- Memory bandwidth (max)
- 21 GB/s
- Graphics card memory type
- GDDR6X
- Graphics processor family
- NVIDIA
- Minimum system power supply
- 750 W
- Discrete graphics card memory
- 16 GB
- Maximum displays per videocard
- 4
- Supplementary power connectors
- 1x 16-pin
- Parallel processing technology support
- Not supported
Check compatibility
Pick any other component — live kernel verdict · Base: Gigabyte WINDFORCE OC GeForce RTX 4070 Ti SUPER 16GB GDDR6X Black
Fits with
12- Thermaltake View 380 XL WS ARGB Mid Tower Chassis Wood Edition SnowThermaltake · case — case with 261mm GPU clearance
- Cougar DarkBlader-G ATX Full Tower Black / Silver with Tempered Glass Side Panel and USB 3.2 Gen 1 Type-A Front PanelCougar · case — case with 261mm GPU clearance
- Lian Li LANCOOL 216 EATX Mid Tower White Tempered Glass RGB w/ControllerLian Li · case — case with 261mm GPU clearance
- Deepcool PF650 Black 230V ATX 650W Non-Modular 80+ CertifiedDeepCool · psu — PSU with ~435W headroom
- Deepcool CH510 MESH DIGITAL ATX Mid Tower Black Tempered GlassDeepCool · case — case with 261mm GPU clearance
Alternatives
4- Gigabyte AI TOP GeForce RTX 4070 Ti SUPER 16GB GDDR6X BlackGigabyte · gpu — interchangeable substitute in the same slot
- Asus GeForce RTX 4070 Ti SUPER DUAL OC 16GB GDDR6X BlackASUS · gpu — interchangeable substitute in the same slot
- Asus ProArt OC GeForce RTX 4070 Ti SUPER 16GB GDDR6X Black / GoldASUS · gpu — interchangeable substitute in the same slot
- Gigabyte WINDFORCE GeForce RTX 4070 Ti SUPER 16GB GDDR6X BlackGigabyte · gpu — interchangeable substitute in the same slot
Upgrades
4- Asus ROG Astral BTF GeForce RTX 5090 32GB GDDR7 Black / SilverASUS · gpu — same slot, strictly better
Gaming performance score
5100 / 10 000
Rank
#9
of 129 in our table
| Game | 1080p | 1440p | 4K |
|---|---|---|---|
 Grand Theft Auto V | ~300 | ~300 | ~300 |
 Baldur's Gate III | ~145 | ~115 | ~70 |
 Red Dead Redemption 2 | ~245 | ~205 | ~130 |
 Cyberpunk 2077 | ~100 | ~90 | ~65 |
 Elden Ring | ~150 | ~130 | ~85 |
 Geometry Dash | ≈300 | ≈300 | ≈300 |
 Roblox | ≈300 | ≈300 | ≈300 |
 The Witcher 3: Wild Hunt | ~125 | ~95 | ~55 |
 Palworld | ~105 | ~80 | ~50 |
 Stardew Valley | ≈300 | ≈300 | ≈300 |
 Minecraft | ~300 | ~300 | ~300 |
 Clair Obscur: Expedition 33 | ~95 | ~75 | ~45 |
