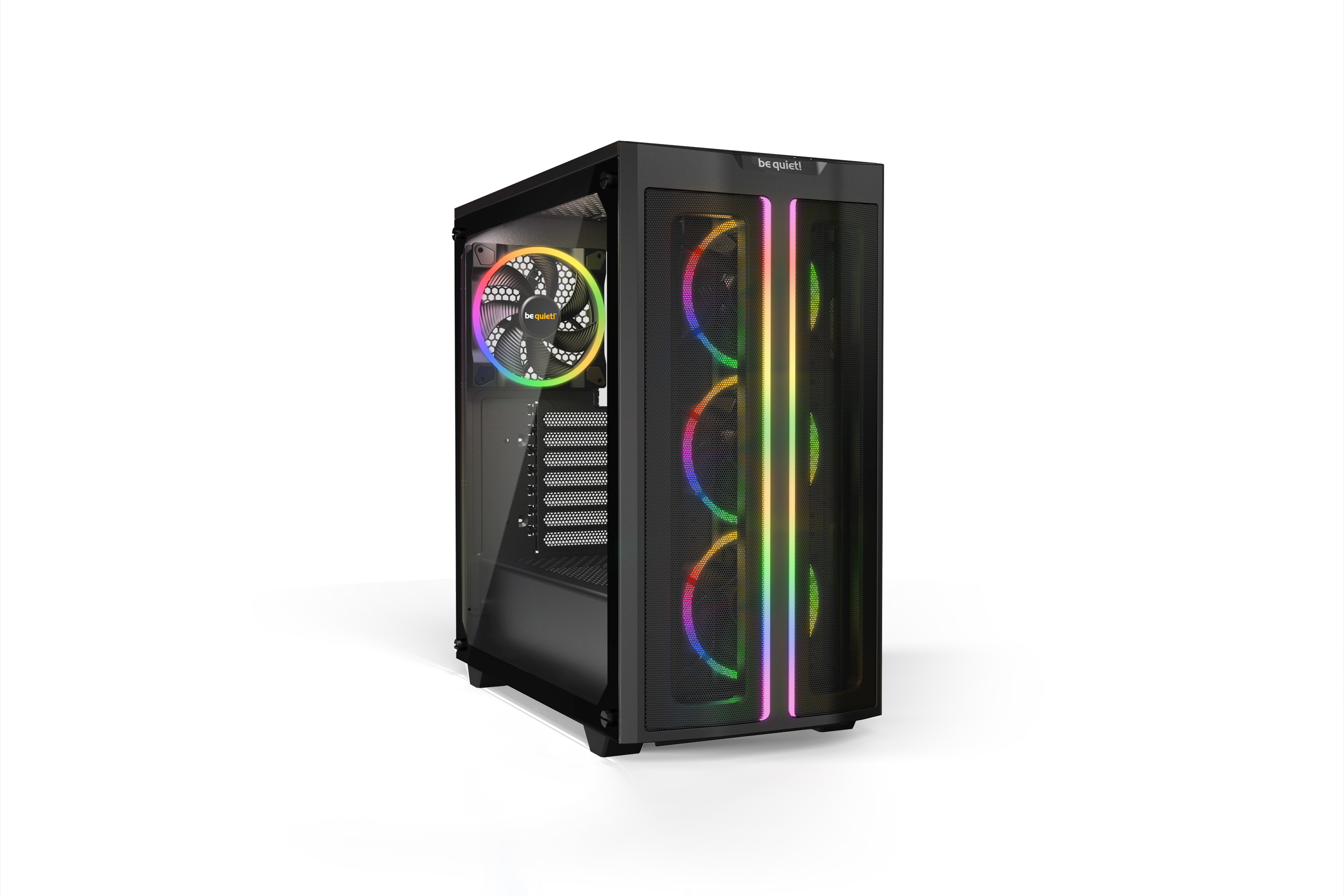

be quiet! Pure Base 500 FX ATX Mid Tower Black Tempered Glass Side Panel
be quiet! · case

be quiet! Pure Base 500 FX ATX Mid Tower Black Tempered Glass Side Panel

ATX/MATX/ITX · 2× 3.5″

Form factor
ATX / MATX / ITX
Max GPU length
369 mm
Max cooler height
190 mm
3.5″ bays
2

Neighbourhood

Top neighbours grouped by relation — click to open

be quiet! Pure Base 500 FX ATX Mid Tower Black Tempered Glass Side Panel
Point at a part to see what it is — click to open it

Specifications

Catalog data

Source: OpenDB
Color
BLACK
Volume
48.337
Weight
17.637
Dimensions
450 x 232 x 463
Side panel
Tempered Glass
Form factor
ATX Mid Tower
Dimensions mm · Depth
450 mm
Dimensions mm · Width
232 mm
Dimensions mm · Height
443 mm
Expansion slots
7
Front panel USB
USB 3.2 Gen 2 Type-C USB 3.2 Type-A
Front USB ports
USB 3.2 Gen 2 Type-C, USB 3.2 Type-A
Show 6 more specs
Internal 2.5 bays
4
Internal 3.5 bays
2
Max CPU cooler height
190 mm
Max video card length
369 mm
Has transparent side panel
Yes
Supported motherboard form factors
ATX, Micro ATX, Mini-ITX

Manufacturer data

Source: Icecat
Type
PC
Depth
450 mm
Width
232 mm
Height
463 mm
Weight
8 kg
Material
Acrylonitrile butadiene styrene (ABS), Steel
Fan speed
1500 - 1700 RPM
Audio input
Yes
Form factor
Midi Tower
Side window
Yes
Air pressure
1.66 mmH2O
Audio output
Yes
Show 48 more specs
Illumination
Yes
Reset button
Yes
Suitable for
Gaming
Fan connector
4-pin
On/off button
Yes
Package depth
510 mm
Package width
285 mm
Led controller
Yes
Led indicators
Yes
Package height
494 mm
Package weight
9.2 kg
Product colour
Black
Maximum airflow
56 cfm
Screws included
Yes
Anti dust filter
Yes
Fan rated current
0.07 A
Fan rated voltage
5 - 13.2 V
Maximum psu length
25.8 cm
Illumination colour
Multi
Number of 2.5" bays
4
Number of 3.5" bays
2
Rear fans installed
1x 140 mm
Supported HDD sizes
2.5,3.5"
Front fans installed
3x 120 mm
Fan power consumption
4.56 W
Illumination location
Case fans, Front
Power supply included
No
Compliance certificates
CE, RoHS
Noise level (low speed)
20.6 dB
Noise level (high speed)
23.3 dB
Liquid cooling capability
Yes
Maximum CPU cooler height
19 cm
Number of expansion slots
7
Sustainability compliance
Yes
Maximum graphics card length
36.9 cm
Top fans diameters supported
120,140 mm
Top radiator sizes supported
120,240 mm
Rear radiator sizes supported
120,140 mm
Front fans diameters supported
120,140 mm
Front radiator sizes supported
120,140,240,280,360 mm
Mean time between failures (mtbf)
60000 h
Number of top fans supported (max)
2
Supported motherboard form factors
ATX, micro ATX, Mini-ITX
Number of rear fans supported (max)
1
Supported power supply form factors
ATX, PS2
Number of front fans supported (max)
3
USB 3.2 gen 1 (3.1 gen 1) type a ports quantity
1
USB 3.2 gen 2 (3.1 gen 2) type c ports quantity
1
