ASUS · gpu

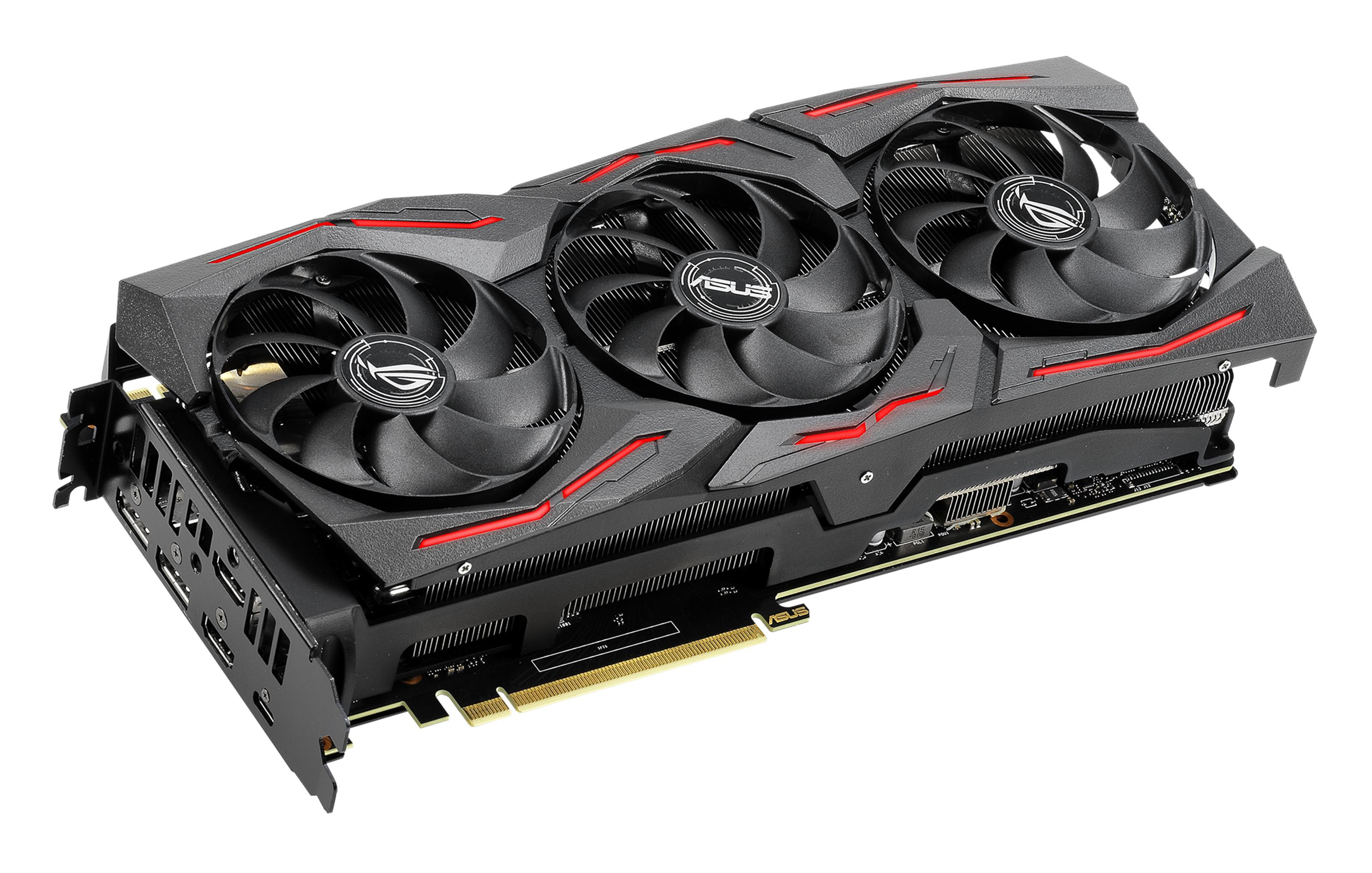

Asus STRIX GAMING OC GeForce RTX 2070 SUPER 8GB GDDR6 Black
8 GB VRAM · 215 W · CUDA
Chipset
GeForce RTX 2070 SUPER
VRAM
8 GB GDDR6
Boost clock
1.935 GHz
TDP
215 W
Length
300 mm
Interface
PCIe x16
Neighbourhood
Top neighbours grouped by relation — click to open
Point at a part to see what it is — click to open it
Specifications
Catalog data
Source: OpenDB- TDP
- 215 W
- Color
- BLACK
- Length
- 300 mm
- Memory
- 8 GB
- Chipset
- GeForce RTX 2070 SUPER
- Cooling
- 3 Fans
- Interface
- PCIe x16
- Memory type
- GDDR6
- Video outputs · HDMI 2.0
- 2
- Video outputs · DisplayPort 1.4a
- 2
- Core base clock
- 1635 MHz
- Core boost clock
- 1935 MHz
Show 3 more specs
- Total slot width
- 3 mm
- Chipset manufacturer
- NVIDIA
- Effective memory clock
- 14000 MHz
Manufacturer data
Source: Icecat- Cuda
- Yes
- Hdcp
- Yes
- Depth
- 49 mm
- Height
- 131 mm
- Length
- 305 mm
- Cuda cores
- 2560
- Firestream
- No
- Memory bus
- 256 bit
- Cooling type
- Active
- HDMI version
- 2.0b
- Nvidia g sync
- Yes
- Interface type
- PCI Express 3.0
Show 19 more specs
- Number of fans
- 3 fan(s)
- Opengl version
- 4.5
- Number of slots
- 2.7
- Bundled software
- ASUS GPU Tweak II & Driver
- Cooling technology
- ASUS Axial-tech
- Graphics processor
- GeForce RTX 2070 SUPER
- Maximum resolution
- 7680 x 4320 pixels
- DisplayPort version
- 1.4
- HDMI ports quantity
- 2
- Displayports quantity
- 2
- Graphics card memory type
- GDDR6
- Graphics processor family
- NVIDIA
- USB type c ports quantity
- 1
- Virtual reality (vr) ready
- Yes
- Minimum system power supply
- 650 W
- Discrete graphics card memory
- 8 GB
- Maximum displays per videocard
- 4
- Supplementary power connectors
- 2x 8-pin
- Parallel processing technology support
- CrossFireX, NVLink
Check compatibility
Pick any other component — live kernel verdict · Base: Asus STRIX GAMING OC GeForce RTX 2070 SUPER 8GB GDDR6 Black
Fits with
12- Thermaltake View 380 XL WS ARGB Mid Tower Chassis Wood Edition SnowThermaltake · case — case with 300mm GPU clearance
- Cougar DarkBlader-G ATX Full Tower Black / Silver with Tempered Glass Side Panel and USB 3.2 Gen 1 Type-A Front PanelCougar · case — case with 300mm GPU clearance
- Lian Li LANCOOL 216 EATX Mid Tower White Tempered Glass RGB w/ControllerLian Li · case — case with 300mm GPU clearance
- Deepcool PF650 Black 230V ATX 650W Non-Modular 80+ CertifiedDeepCool · psu — PSU with ~365W headroom
- Deepcool CH510 MESH DIGITAL ATX Mid Tower Black Tempered GlassDeepCool · case — case with 300mm GPU clearance
Alternatives
4- EVGA XC ULTRA GAMING GeForce RTX 2070 SUPER 8 GBEVGA · gpu — interchangeable substitute in the same slot
- Gigabyte GAMING OC GeForce RTX 2070 SUPER 8GB GDDR6 WhiteGigabyte · gpu — interchangeable substitute in the same slot
- Gigabyte AORUS GeForce RTX 2070 SUPER 8GGigabyte · gpu — interchangeable substitute in the same slot
Upgrades
4Gaming performance score
2100 / 10 000
Rank
#43
of 129 in our table
| Game | 1080p | 1440p | 4K |
|---|---|---|---|
 Grand Theft Auto V | ~300 | ~300 | ~185 |
 Baldur's Gate III | ~75 | ~40 | ~20 |
 Red Dead Redemption 2 | ~135 | ~95 | ~55 |
 Cyberpunk 2077 | ~65 | ~35 | ~20 |
 Elden Ring | ~85 | ~45 | ~25 |
 Geometry Dash | ≈300 | ≈300 | ≈300 |
 Roblox | ≈300 | ≈300 | ≈300 |
 The Witcher 3: Wild Hunt | ~55 | ~30 | ~17 |
 Palworld | ~50 | ~25 | ~15 |
 Stardew Valley | ≈300 | ≈300 | ≈300 |
 Minecraft | ~300 | ~300 | ~300 |
 Clair Obscur: Expedition 33 | ~45 | ~25 | ~13 |
