ASUS · gpu

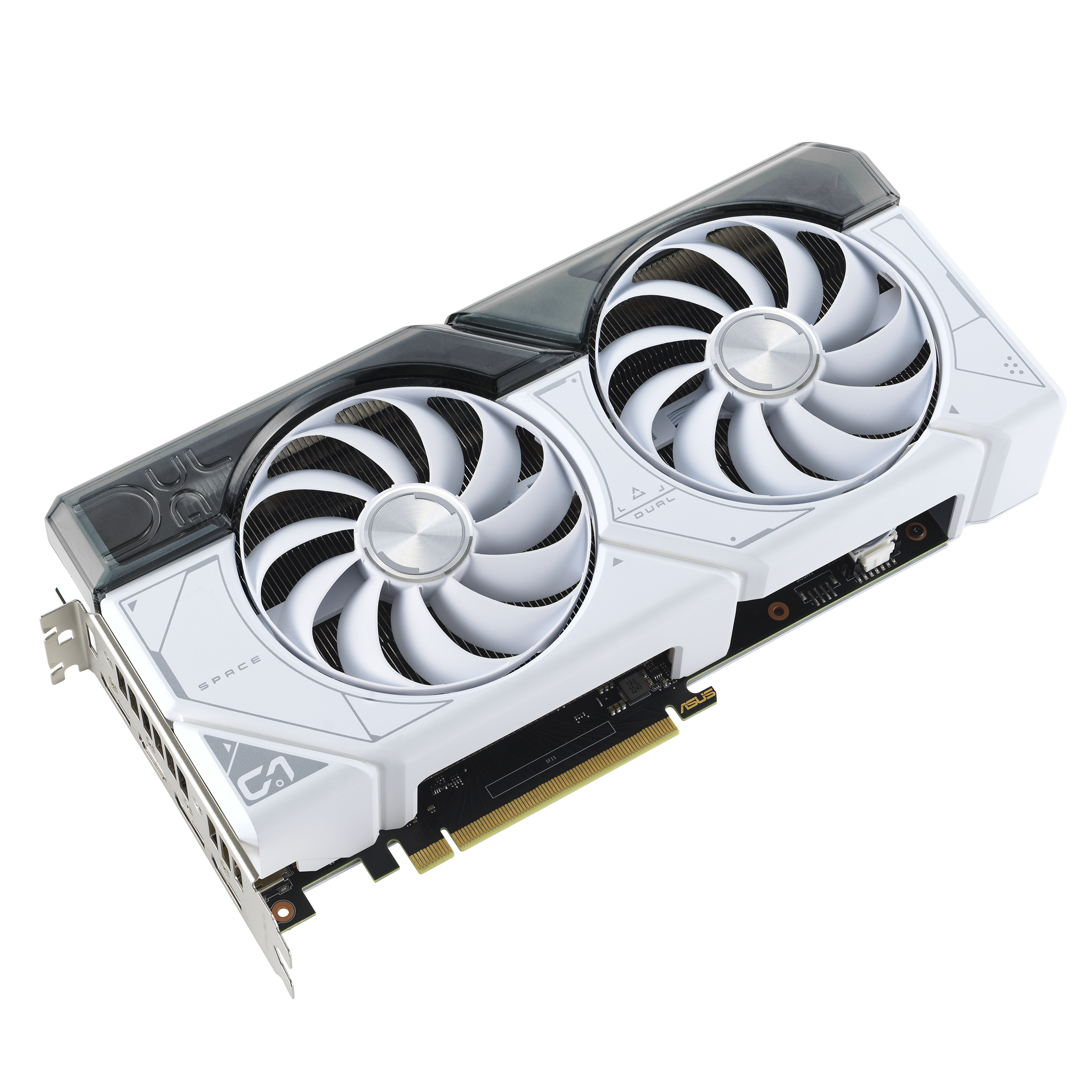

Asus DUAL OC GeForce RTX 4070 12GB GDDR6X White

12 GB VRAM · 200 W · CUDA

Chipset

GeForce RTX 4070

VRAM

12 GB GDDR6X

Boost clock

2.55 GHz

TDP

200 W

Length

267 mm

Interface

PCIe x16

Neighbourhood

Top neighbours grouped by relation — click to open

Asus DUAL OC GeForce RTX 4070 12GB GDDR6X White

Point at a part to see what it is — click to open it

Specifications

Catalog data

Source: OpenDB

TDP: 200 W
Color: WHITE
Length: 267 mm
Memory: 12 GB
Chipset: GeForce RTX 4070
Cooling: 2 Fans
Interface: PCIe x16
Core count: 5888
Memory type: GDDR6X
Video outputs · HDMI 2.1: 1
Video outputs · DisplayPort 1.4a: 3
Core base clock: 2520 MHz

Show 3 more specs

Core boost clock: 2550 MHz
Total slot width: 3 mm
Chipset manufacturer: NVIDIA

Manufacturer data

Source: Icecat

Cuda: Yes
Depth: 51.1 mm
Height: 133.9 mm
Length: 267 mm
Weight: 968 g
Cuda cores: 5888
Memory bus: 192 bit
Form factor: Full-Height/Half-Length (FH/HL)
Amd freesync: No
Cooling type: Active
HDMI version: 2.1
Nvidia ansel: Yes

Show 30 more specs

Package type: Box
Dual link DVI: No
Nvidia g sync: Yes
Package depth: 233 mm
Package width: 405 mm
Interface type: PCI Express 4.0
Number of fans: 2 fan(s)
Opengl version: 4.6
Package height: 88.5 mm
Package weight: 1.73 kg
Product colour: White
Directx version: 12 Ultimate
Number of slots: 2.56
Cooling technology: ASUS Axial-tech
Graphics processor: GeForce RTX 4070
Maximum resolution: 7680 x 4320 pixels
DisplayPort version: 1.4a
HDMI ports quantity: 1
Tv tuner integrated: No
Displayports quantity: 3
Memory bandwidth (max): 21 GB/s
Graphics card memory type: GDDR6X
Graphics processor family: NVIDIA
Minimum system power supply: 650 W
Processor boost clock speed: 2520 MHz
Discrete graphics card memory: 12 GB
Processor frequency (oc mode): 2550 MHz
Maximum displays per videocard: 4
Supplementary power connectors: 1x 8-pin
Parallel processing technology support: Not supported

Gaming performance score

3850 / 10 000

Rank

#21

of 129 in our table

Estimated FPS at Medium preset with a Asus DUAL OC GeForce RTX 4070 12GB GDDR6X White and a Ryzen 5 7600.
Game	1080p	1440p	4K
Grand Theft Auto V	~300	~300	~300
Baldur's Gate III	~125	~95	~40
Red Dead Redemption 2	~215	~170	~100
The Witcher 3: Wild Hunt	~100	~70	~30
Roblox	≈300	≈300	≈300
Elden Ring	~135	~105	~50
Geometry Dash	≈300	≈300	≈300
Minecraft	~300	~300	~300
Cyberpunk 2077	~95	~80	~35
Stardew Valley	≈300	≈300	≈300
Palworld	~85	~60	~25
Apex Legends	≈300	≈240	≈140
