ASUS · gpu

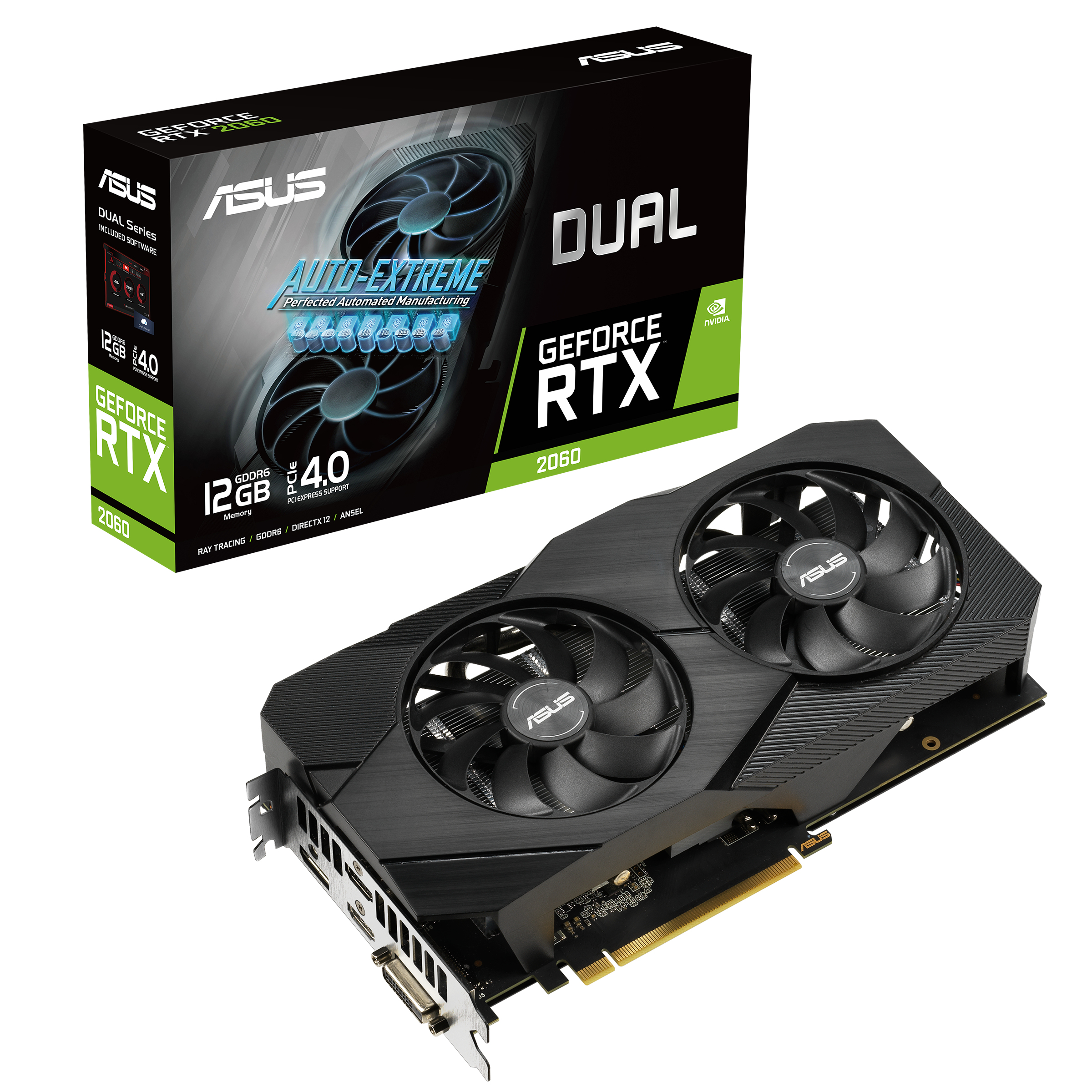

Asus DUAL EVO GeForce RTX 2060 12GB 12GB GDDR6 Black
12 GB VRAM · 185 W · CUDA
Chipset
GeForce RTX 2060
VRAM
12 GB GDDR6
Boost clock
1.68 GHz
TDP
185 W
Length
242 mm
Interface
PCIe x16
Neighbourhood
Top neighbours grouped by relation — click to open
Point at a part to see what it is — click to open it
Specifications
Catalog data
Source: OpenDB- TDP
- 185 W
- Color
- BLACK
- Length
- 242 mm
- Memory
- 12 GB
- Chipset
- GeForce RTX 2060
- Cooling
- 2 Fans
- Interface
- PCIe x16
- Memory type
- GDDR6
- Video outputs · DisplayPort 1.4a
- 1
- Core base clock
- 1470 MHz
- Core boost clock
- 1680 MHz
- Power connectors · PCIe 8 pin
- 1
Show 2 more specs
- Total slot width
- 3 mm
- Chipset manufacturer
- NVIDIA
Manufacturer data
Source: Icecat- Cuda
- Yes
- Hdcp
- Yes
- Depth
- 53 mm
- Height
- 130 mm
- Length
- 242 mm
- Manual
- Yes
- Weight
- 768 g
- Cuda cores
- 2176
- Memory bus
- 192 bit
- Cooling type
- Active
- HDMI version
- 2.0b
- Dual link DVI
- No
Show 24 more specs
- Interface type
- PCI Express x16 3.0
- Number of fans
- 2 fan(s)
- Opengl version
- 4.6
- Product colour
- Black
- Directx version
- 12.0
- Number of slots
- 2.7
- Drivers included
- Yes
- Cooling technology
- ASUS Axial-tech
- Data transfer rate
- 14 Gbit/s
- Graphics processor
- GeForce RTX 2060
- Maximum resolution
- 7680 x 4320 pixels
- DisplayPort version
- 1.4a
- HDMI ports quantity
- 2
- Processor frequency
- 1680 MHz
- Tv tuner integrated
- No
- DVI d ports quantity
- 1
- Displayports quantity
- 1
- Graphics card memory type
- GDDR6
- Graphics processor family
- NVIDIA
- Minimum system power supply
- 500 W
- Discrete graphics card memory
- 12 GB
- Processor frequency (oc mode)
- 1710 MHz
- Maximum displays per videocard
- 4
- Supplementary power connectors
- 1x 8-pin
Check compatibility
Pick any other component — live kernel verdict · Base: Asus DUAL EVO GeForce RTX 2060 12GB 12GB GDDR6 Black
Fits with
12- Deepcool PF650 Black 230V ATX 650W Non-Modular 80+ CertifiedDeepCool · psu — PSU with ~335W headroom
Deepcool CH510 MESH DIGITAL ATX Mid Tower Black Tempered GlassDeepCool · case — case with 242mm GPU clearance- Thermaltake View 380 XL WS ARGB Mid Tower Chassis Wood Edition SnowThermaltake · case — case with 242mm GPU clearance
- Lian Li LANCOOL 216 EATX Mid Tower White Tempered Glass RGB w/ControllerLian Li · case — case with 242mm GPU clearance
- Cougar DarkBlader-G ATX Full Tower Black / Silver with Tempered Glass Side Panel and USB 3.2 Gen 1 Type-A Front PanelCougar · case — case with 242mm GPU clearance
Alternatives
5- EVGA XC BLACK GeForce RTX 2060 12GB GDDR6 PCI Express 3.0 Video Cards 12G-P4-2261-KREVGA · gpu — interchangeable substitute in the same slot
- EVGA XC GAMING GeForce RTX 2060 12GB GDDR6 BlackEVGA · gpu — interchangeable substitute in the same slot
- EVGA GeForce RTX 2060 XC BLACK GAMING 12GB GDDR6 BlackEVGA · gpu — interchangeable substitute in the same slot
- Zotac GAMING Twin Fan GeForce RTX 2060 12GB GDDR6 GrayZotac · gpu — interchangeable substitute in the same slot
- Gigabyte WINDFORCE OC GeForce RTX 2060 12GB 12 GBGigabyte · gpu — interchangeable substitute in the same slot
Upgrades
4Gaming performance score
1450 / 10 000
Rank
#76
of 151 in our table
| Game | 1080p | 1440p | 4K |
|---|---|---|---|
 Grand Theft Auto V | ~295 | ~220 | ~130 |
 Baldur's Gate III | ~50 | ~35 | ~15 |
 Red Dead Redemption 2 | ~95 | ~65 | ~40 |
 Cyberpunk 2077 | ~45 | ~35 | ~14 |
 Elden Ring | ~60 | ~40 | ~18 |
 Geometry Dash | ≈300 | ≈300 | ≈300 |
 Roblox | ≈300 | ≈300 | ≈300 |
 The Witcher 3: Wild Hunt | ~40 | ~25 | ~12 |
 Palworld | ~35 | ~25 | ~10 |
 Stardew Valley | ≈300 | ≈300 | ≈300 |
 Minecraft | ~300 | ~300 | ~300 |
 Clair Obscur: Expedition 33 | ~30 | ~20 | ~9 |
