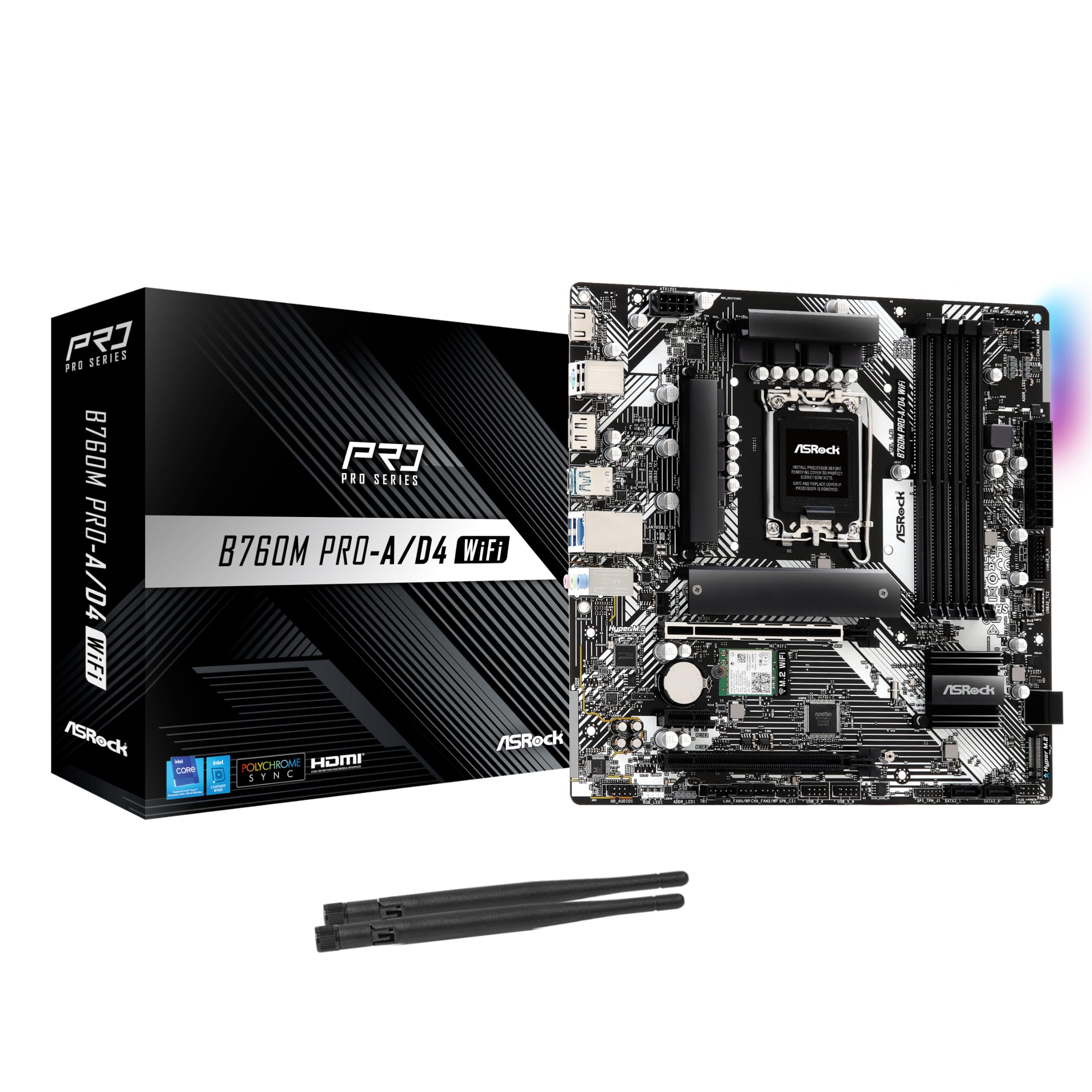

ASRock B760M Pro-A D4 WiFi DDR4 Micro ATX

Intel B760 · MATX · 4× M.2

Socket

LGA 1700

Chipset

Intel B760

Form factor

MATX

Memory

DDR4

Max memory

128 GB

M.2 slots

4

Neighbourhood

Top neighbours grouped by relation — click to open

ASRock B760M Pro-A D4 WiFi DDR4 Micro ATX

Point at a part to see what it is — click to open it

Specifications

Catalog data

Source: OpenDB

Audio · Chipset: Realtek
Audio · Channels: 7.1
Color: WHITE, BLACK, GREY
Memory · Max: 128 GB
Memory · Slots: 4
Memory · RAM type: DDR4
Socket: LGA 1700
Chipset: Intel B760
M.2 slots 1: Key M · 2242-2260 · PCIe 4.0 x4
M.2 slots 2: Key M · 2280 · PCIe 4.0 x4
M.2 slots 3: Key M · 2280 · PCIe 4.0 x4
M.2 slots 4: Key E · 2280 · PCIe 4.0 x4

Show 26 more specs

PCIe slots 1: Gen 4.0 · Lanes 16 · Quantity 2
PCIe slots 2: Gen 4.0 · Lanes 1 · Quantity 1
PCIe slots 3: Gen 4.0 · Lanes 4 · Quantity 1
ECC support: No
Fan headers · Pump: 1
Fan headers · CPU fan: 1
Fan headers · Case fan: 4
Form factor: Micro ATX
RGB headers · ARGB 5v: 3
RGB headers · RGB 12v: 1
USB headers · USB 2.0: 2
USB headers · USB 3.2 gen 1: 2
Raid support: Yes
Bios features · Flashback: No
Bios features · Clear cmos: No
Other headers · Thunderbolt: 1
Storage devices · SATA 6 gb s: 4
Back panel ports: 2 x Antenna Mounting Points, 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI 2.1 Port, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen1 Type-C Port, 3 x USB 3.2 Gen1 Type-A Ports, 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port, 3 x HD Audio Jacks
Onboard ethernet 1: 2.5 Gb/s
Power connectors · CPU power: 8-pin
Power connectors · Main power: 24-pin
Front panel headers · HDD led: Yes
Front panel headers · Power led: Yes
Front panel headers · Power button: Yes
Front panel headers · Reset button: Yes
Back connect connectors: No
